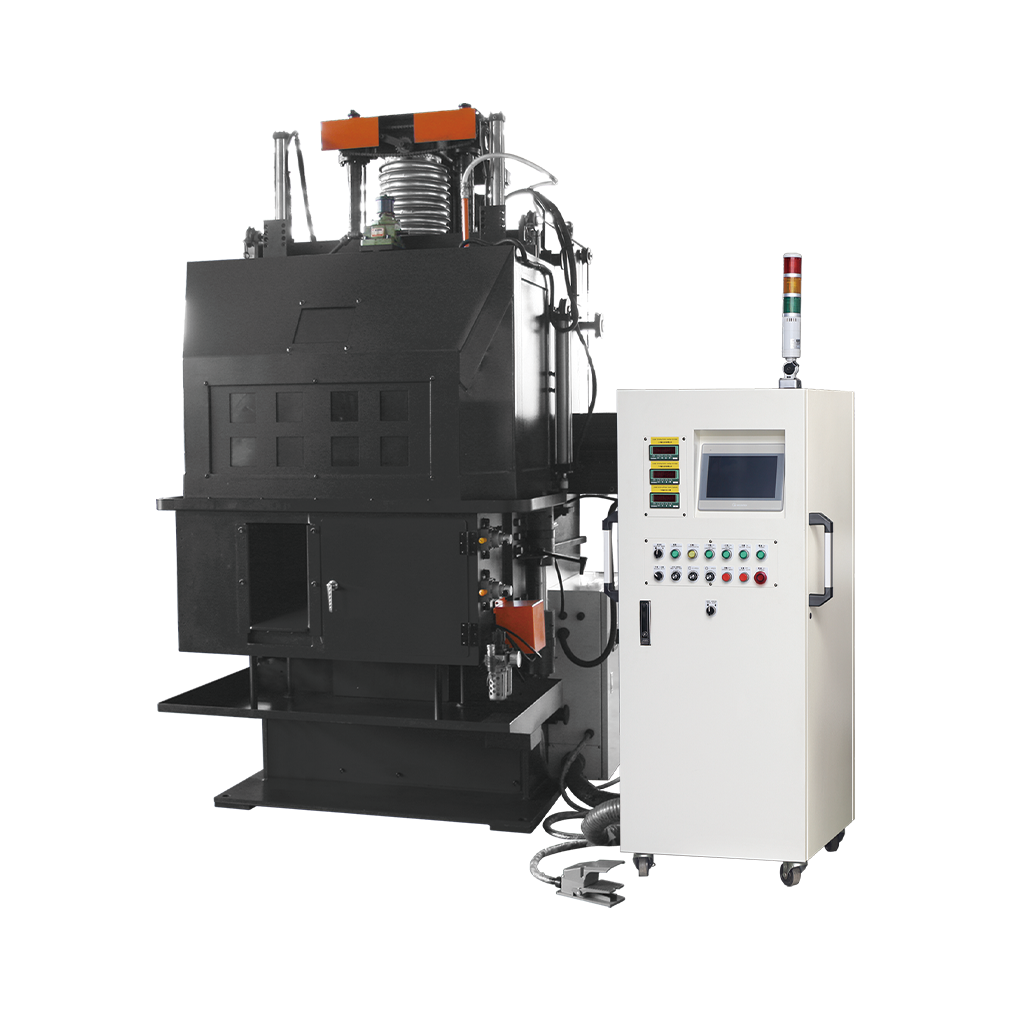

Spring Grinding Machine | CNC-WL-660-2-3S
Spring Grinding Machine | CNC-WL-660-2-3S
- Down Feed Spring End Grinding Machine(Wet type)
- Minimize the air pollution. Accessible by operators.
- Spring will not deteriorate after grinding.
- Faster in productivity than air-cooling type for 1 ~ 2 times.
- Less space: Lower sand wheel wearing, less than air-cooling type for within 50%.
- Automatic sludge removing and will not be rejected by operators.
| Wire Capacity(mm) | Ø 2.0~20.0 mm | |
| Max. Spring O .D.(mm) | Ø 60.0~100 mm | |
| Spring Length(mm) | 15~300 mm | |
| Production Speed(pcs/min) | 35~280 pcs / 4~8 min | |
| Plate Rate(rpm) | 1~4 rpm | |
| Grinding Wheel Rate(rpm) | 1000 rpm | |
Machine Body Dimension(mm) Electronic Control Box And Screen Excluded | L | 1600 mm |
| D | 2100 mm | |
| H | 3000 mm | |
Safety Operation Location Area(mm) | L | 8500 mm |
| D | 6000 mm | |
| Machine Weight(kgs) | 5000 kgs | |
